Machinery

We always have the right equipment for your challenges. We are constantly developing it further – a know-how that even manufacturers value and use to optimize their machines.

Ballast Cleaning Machine RM90

Vehicle Type: Cleaning Machine Manufacturer: Plasser & Theurer Model: RM90 Year of Manufacture: 2006 Series: 99879314 510-8 Vehicle Number: 437 Weight: 131,0t Axles: 7 Approved Speed (Self-propelled): 96 km/h Maximum Speed (in train): 100 km/h Engine Manufacturer: Caterpillar Model: 3412 E Power: 611 kW Dimensions Length: 41,2m Width: 2,8m Height: 3,96m Features and Capabilities: Suitable for use on railway tracks and switches Cleaning capacity of 350 sqm/h, approximately 150 m/h
more

Ballast Profiling Machine SSP 100

Vehicle Type: Ballast Plow Manufacturer: Plasser & Theurer Model: SSP 110 Year of Manufacture: 1988 Series: 86-01304 WRO Vehicle Number: 441 Weight: 34,500 kg Axles: 2 Approved Speed: 90 km/h Maximum Speed: 90 km/h Engine Manufacturer: KHD Model: BF 12 L513 C Power: 235 KW Dimensions Length: 17.23 m Width: 3,00m Height: 4,65m High-Performance Profiling Machine SSP 110 Automatic Limitation of Side Plow Rotation
more

Welding Unit SCHLATTER AMS100

Vehicle Type: Mobile Rail Welding System Manufacturer: SCHLATTER Model: AMS 100 on Platform Wagon Year of Manufacture: 2007 Platform Type: 33 53 3557 665-8 Weight: 3,5t Engine Manufacturer: MAN Model: Power: Dimensions Length: 2,40m Width: 1,20m Height: 1,10m Application Areas: Railway Tracks: Types UIC 60, UIC 54, 49E1, R65, etc. Tram Tracks: NP4aS (62Ri2) Steel Grades: According to SR EN 13674-1 R200, R260, R260Mn, R350HT Electrothermal Process: Electric welding through intermediate melting and pressure. Further Technical Specifications: Schlatter AMS100 integrated metal container construction: Container 1: Hydraulic Unit: Bosch Rexroth AG Control System: Siemens Simatic S7 Welding Current Control: SWEP 06 Continuous Monitoring of Welding Parameters: Weld Analyser/Visual Weld Container 2: Diesel-Electric Generator 320 kVA Automatic Alignment of Centerlines, Welding Tolerances: Horizontal Plane (+0.30 mm), Vertical Plane (±0.20 mm). Automatic Removal of Weld Beads across the rail profile. High Productivity – Fast welding time of 90 seconds.
more

Mobile Dual-Mode Rail Welding Unit FBW K900 GT-W

Vehicle Type: Mobile Rail Welding Unit Manufacturer: GAMA Tools Model: FBW K900GT-W Year of Manufacture: 2013 Serial Number: WMA39SZZ0DM616525 Weight: 2,6t Engine Manufacturer: MAN Model: Power: Dimensions Length: 1,55m Width: 1,06m Height: 1,30m Application Areas: Rail Tracks: Types S49, UIC 60, UIC 54, 49E1, R65, etc. Tram Tracks: NP4aS (62Ri2) Steel Grades: According to SR EN 13674-2 R200, R260, R260Mn, R350HT Electrothermal Process: Electric welding through intermediate melting and pressure. Additional Technical Specifications: K900GT-W integrated construction in a metal container: Hydraulic Unit: Sauer Danfoss, electric-powered Kawasaki Control System: Beckhoff CX5020 Welding Process Controller: WDAS Continuous Welding Parameter Controller: OLAER CW 201 – 60 C Dual-mode Chassis: MAN Truck – TGS 41.440 8×4 BB Power Generator: Perkins 2506 D-E15TAG 2 / 320 KVA Automatic Alignment of Centerlines, Weld Tolerances: Horizontal Plane (+0.30 mm), Vertical Plane (±0.20 mm).
more

Tracked Front Loader Vehicle CAT 966 G II

Vehicle Type: Front Loader Manufacturer: Caterpillar Model: 966 G II Year of Manufacture: 2003 Serial Number: 3PW01328 (30158) Ground Clearance: 430 mm Weight: 24,0t Bucket Capacity: 4.20 m³ Maximum Speed (forward): 37,3 km/h Maximum Speed (reverse): 42,3 km/h Engine Manufacturer: Caterpillar Model: 3176 CAT AAC Power: 196 kW Dimensions Length: 9,20m Width: 2,90m Height: 3,60m
more

Tracked Excavator CAT 320 CL

Vehicle Type: Tracked Excavator (Hydraulic) Manufacturer: Caterpillar Model: 320 CL Year of Manufacture: 2003 Serial Number: CATO320CCGLA00682 Ground Clearance: 460 mm Weight: 21,8t Maximum Speed: 5.5 km/h Engine Manufacturer: Caterpillar Model: ATAAC 3066 Power: 102,9 kW Dimensions Length: 10,04m Width: 2,98m Height: 3,01m Equipment and Accessories:Compactor; Vacuum Cleaner; Vacuum Lifter; Picon; Vibratory Plate; Scarifier and Cleaner; Vacuum Lifting Devices; Sleeper Replacement Device; 30′ + 80′ Grader; Excavator Bucket; Trenching Bucket; Attachment Rotation Device. Maximum Digging Depth: 5.5 meters
more

Bulldozer CAT D6N LGP with 2D Topcon Laser System

Vehicle Type: Bulldozer Manufacturer: Caterpillar Model: D6N LGP Year of Manufacture: 2001 Serial Number: BMA08282 Ground Clearance: 394 mm Weight: 17,8t Maximum speed (forward): 10 km/h Maximum speed (reverse): 11,6 km/h Engine Manufacturer: Caterpillar Model: CAT3126B Power: 112 kW Dimensions Length: 3,74m Width: 2,50m Height: 3,09m Equipment and Accessories: TOPCON 2D Automatic Laser Leveling System
more

Bulldozer CAT D6N LGP with 2D Topcon Laser System

Vehicle Type: Bulldozer Manufacturer: Caterpillar Model: D6K XL Year of Manufacture: 2001 Serial Number: WMR01008 Ground Clearance: 394 mm Weight: 17,8t Maximum speed (forward): 19,0 km/h Maximum speed (reverse): 11,6 km/h Engine Manufacturer: Caterpillar Model: CAT3126B Power: 112 kW Dimensions Length: 3,74m Width: 2,50m Height: 3,09m Equipment and Accessories: TOPCON 2D Automatic Laser Leveling System
more

Multifunctional Dual-Mode Truck UNIMOG U100 RO

Vehicle Type: Multifunctional Truck Manufacturer: Daimler Benz – Unimog U100 Model: 460 – 04 Year of Manufacture: 1981 Serial Number: 42412110080884 Weight: 7,5t Axles: 2 + 2 Approved Speed: 50 km/h on straight track Maximum Speed: 62 km/h Engine Manufacturer: Daimler Benz – Unimog U100 Model: OM 352 Power: 70 kW Dimensions Length: 4,90m Width: 2,11m Height: 2,77m
more

Multipurpose Excavator ATLAS 1604

Vehicle Type: Multipurpose Excavator Manufacturer: Atlas Model: ZW-1604 Year of Manufacture: 1998 Serial Number: 167 Z 301 359 Weight: 2,2t Axles: 2 + 2 Approved Speed: 20 km/h on straight track Maximum Speed: 20 km/h Engine Manufacturer: Deutz Model: BF 4M 1013 E Power: 98 kW Dimensions Length: 5,96m Width: 2,56m Height: 4,00m Equipment and Accessories:Compactor; Vacuum Cleaner; Pickaxe; Vibratory Plate; Weed Extractor and Cleaner; Vacuum Lifting Device; Traverse Change Device; 30′ + 80′ Grader; Excavator Bucket; Trenching Bucket; Attachment Rotation Device. Attachments:Various lifting attachments; Rail Lifting Gripper; Forklift; Mobile Tank with 950-liter capacity. Maximum Digging Depth: 5.5 meters
more

Switch Tamping Machine 08-275 Unimat 3S

Vehicle Type: Bureza Manufacturer: Plasser & Theurer Model: 08-275 unimat 3S Year of Manufacture: 1992 Serial Number: 99 80 94 24006-1 Series: 975 Weight: 72,6t Axles: 5 Approved Speed: 100 km/h Maximum Speed: 100 km/h Engine Manufacturer: Deutz Model: BF 12 L 513 F Power: 348 kW Dimensions Length: 27,94m Width: 3,00m Height: 3,42m Features and Capabilities: Use with power lines and cranes. Height adjustment in length and direction (with laser). Vibrating arrangement system for broken stone prisms at the ends of sleepers. Computer-aided operation (onboard PC equipped with Servogor system with 6 channels for recording track geometric parameters and printing diagrams) with high geometric accuracy for the selected track after work. Machine productivity: 400 m/h.
more

Switch Tamping Machine 08-275 Unimat

Vehicle Type: Bureza Manufacturer: Plasser & Theurer Model: 08-275 Unimat Year of Manufacture: 1988 Serial Number: 97 43 41 514 17 -8 Series: 824 Weight: 75,0t Axles: 5 Approved Speed: 100 km/h Maximum Speed: 100 km/h Engine Manufacturer: Deutz Model: BF 12 L 513 F Power: 348 kW Dimensions Length: 23,70m Width: 3,08m Height: 3,43m Features and Capabilities: Use with power lines and cranes. Height adjustment in length and direction (with laser). Vibrating arrangement system for broken stone prisms at the ends of sleepers. Computer-aided operation (onboard PC equipped with Servogor system with 6 channels for recording track geometric parameters and printing diagrams) with high geometric accuracy for the selected track after work. Machine productivity: 300 m/h.
more

Track Tamping Machine CSM 09-32

Vehicle Type: Bureza Manufacturer: Plasser & Theurer Model: 09-32 CSM Year of Manufacture: 1993 Serial Number: 97 40 68 527 17 -1 Serie: 975 Weight: 69,0t Axles: 6 Approved Speed: 90 km/h Maximum Speed: 90 km/h Engine Manufacturer: Deutz Model: BF 12 C 413 Power: 348 kW Dimensions Length: 27,70m Width: 2,96m Height: 3,60m Features and Capabilities: Current line usage. Simultaneous tamping of two sleepers (machine moves continuously forward). Track level correction in length and direction (with laser). Vibrating arrangement system for ballast prisms at the ends of sleepers. Computer-aided operation (onboard PC equipped with Servogor system with channels for recording track geometric parameters and printing diagrams) with high geometric accuracy for the selected track parameters after work. Machine productivity: 1,200 m/h.
more

Track Tamping Machine with Dynamic Stabilization 09-90 Dynamic

Vehicle Type: Bureza Manufacturer: Plasser & Theurer Model: 09-90 Dynamic Year of Manufacture: 1992 Serial Number: 97 40 67 50117 -7 Series: 2481 Weight: 130,0t Axles: 9 Approved Speed: 90 km/h Maximum Speed: 100 km/h Engine Manufacturer: Deutz Model: KHD BF 12L 513 C/ KHD F 6 L513 R Power: 348 kW / 167 kW Dimensions Length: 5,40m Width: 2,96m Height: 3,42m Features and Capabilities: Current line usage. Simultaneous tamping of two sleepers (machine moves continuously forward). Track level correction in length and direction (with laser). Vibrating arrangement system for ballast prisms at the ends of sleepers. Computer-aided operation (onboard PC equipped with Servogor system with 6 channels for recording track geometric parameters and printing diagrams) with high geometric accuracy for the selected track parameters after work. Sweeping machine achieves a productivity rate of 1,200 m/h.
more

Rail Trolley RMS

Vehicle Type: Rail Vehicle Manufacturer: SVLSPA Model: RMS-9 Year of Manufacture: 2024 Drive System: Hydrostatik Serial Number: 404824 Weight: 10,5t Axles: 2 Travel Speed: 55 km/h Working Speed: 9 km/h Engine Manufacturer: Deutz Model: D/TD/TCD/2011 Power: 31 kW Dimensions Length: 5,74m Width: 2,50m Height: 3,00m Platform Specifications: Maximum Number of Persons on Platform (Max Weight 500 kg): 5 Maximum Platform Height: 5.70 m
more

Rail Trolley ECONIC

Vehicle Type: Vehicle Manufacturer: Mercedes Benz Model: 957.54 ECONIC Year of Manufacture: 2006 Serial Number: WDR 9575431V206776 Weight: 20,0t Drive System: Hydrostatik Brake System: Hydrostatic Travel Speed: 30 km/h Working Speed: 5 km/h Engine Manufacturer: Mercedes Model: OM906LA.IV/3 Power: 205 kW Dimensions Length: 9,57m Width: 2,50m Height / Operating Height: 3.47 m / 3.67 m Specialty Dual-Mode Vehicle for Overhead Line Maintenance ECONIC Platform Capacity: 300 kg / 3 persons Rail Equipment Manufacturer: ZWEIWEG Schneider GmbH Number of Rail Guidance Devices: 2 Work Platform Manufacturer: TIME EXPORT Sonderwang 3 DK-9640 Farse (Versalift VST-5000-N1200)
more

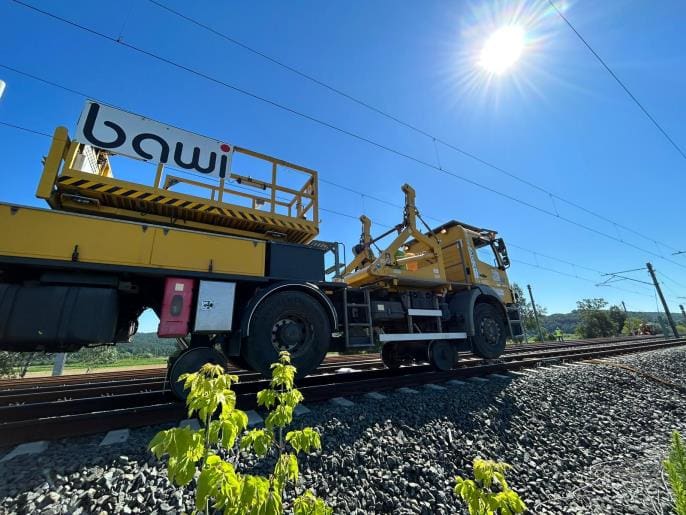

Rail Trolley AXOR

Vehicle Type: Vehicle Manufacturer: Mercedes Benz Model: AXOR 1829 Year of Manufacture: 2008 Serial Number: WDR 9505021I353099 Weight: 19,0t Drive System: Hydrostatik Brake System: Hydrostatic / Spring-applied brake Travel Speed: 25 km/h Working Speed: 5 km/h Engine Manufacturer: Mercedes Model: OM906LA.IV/3 Power: 210 kW Dimensions Length: 8,82m Width: 2,50m Height / Operating Height: 3.47 m / 3.67 m Track Guidance Equipment (TGE) Design: Rocker arm Number of Track Guidance Devices: 2 Track Construction Machinery Manufacturer (TGE): SBZ Factory Number of Track Guidance System: 07-11-299
more

Hydraulic Attachment Tamping Machine CEMAFER MB8A

Vehicle Type: Hydraulic Tamping Attachment Unit Manufacturer: CEMAFER Model: MB8A Series: 118 Weight: 2.500 kg Axles: 2 Number of Tamping Hammers: 8 Dimensions Length: 1,50m Width: 2,49m Height: 2,25m The unit is operated hydraulically from the cabin of a multifunctional excavator to which it is attached.
more
